We supply flanges and drum components on their own, to customers who assemble drums in house. The flanges are formed on an automated line, with the hub bore and tie rod holes already made, strapped into packs ready for transport.
Flanges and blanks from standard production
| Flange diameter Dmm | Thickness Smm | Axle bore dmm | Driver holes d4mm | Tie rods |
|---|---|---|---|---|
| 600 | 32–38 | 75–83 | 28–40 | 3 × M12 |
| 800 | 34–58 | 75–83 | 35–40 | 4 × M12 |
| 1000 | 36–50 | 80–106 | 35–50 | 4 × M12 |
| 1200 | 44–50 | 80–106 | 35–50 | 4 × M12 |
| 1400 | 44–57 | 80–127 | 50–65 | 6 × M12 |
| 1600 | 52–64 | 80–127 | 50–65 | 6 × M16 |
| 1800 | 50–70 | 100–132 | 50–65 | 8 × M16 |
| 2000 | 44–76 | 100–132 | 50–65 | 8 × M16 |
| 2200 | 64–90 | 125–132 | 63–65 | 8 × M20 |
| 2500 | 90–113 | 125 | 63–65 | 10 × M24 |
| 2800 | 110–122 | 125–140 | 63–65 | 10 × M24 |
| 3000 | 120–122 | 134–140 | 63–65 | 12 × M24 |
Values for standard versions. Thickness and hole pattern follow the drum design and the requirements of your winding line — flanges are also made to customer drawings.

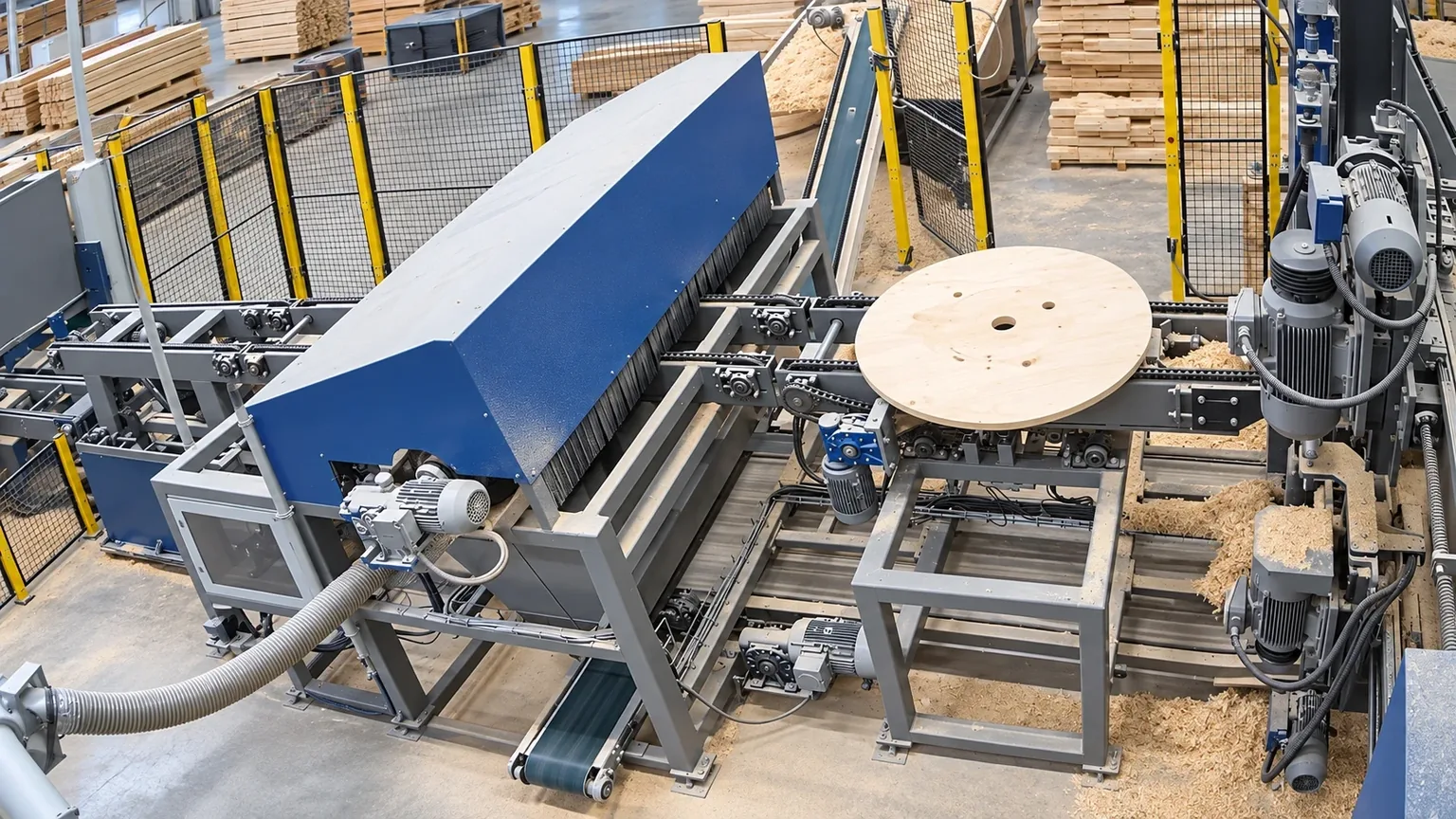

The flanges come off a forming line, not a hand saw. Diameter, hub bore and tie rod hole pitch repeat across the whole batch, so assembly at your works does not mean adjusting every single piece.
For regular customers we keep the agreed flange pattern on file, so each new delivery matches the previous one without redefining the parameters.
The same flanges go into our cable drums, where you will find the size range with load capacities and weights. We also build to DIN 46391 and CEI-UNEL 09812 dimensions.

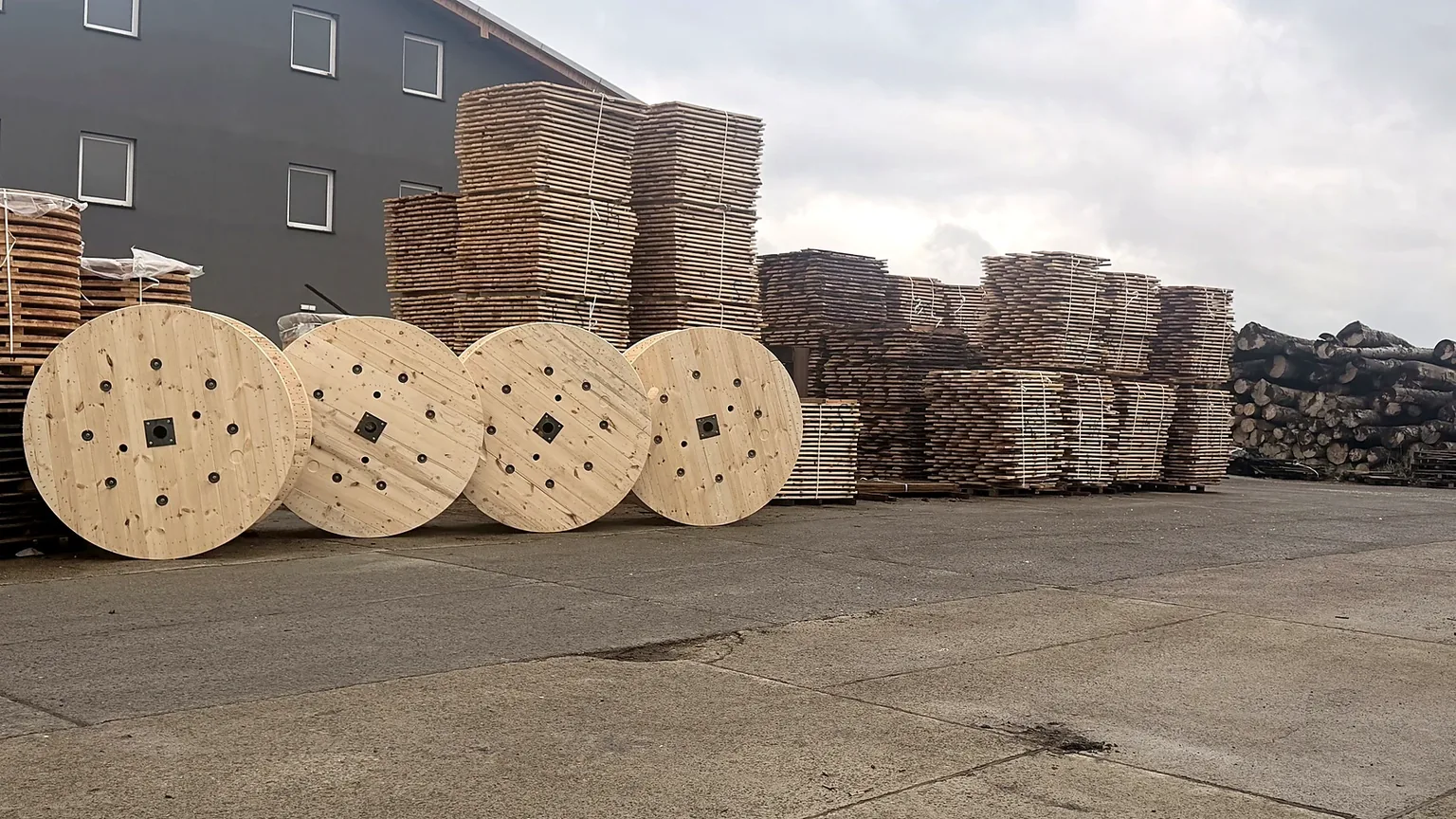

Flanges are strapped into packs sized for unloading with a forklift or telehandler. A flat pack takes far less trailer space than finished drums, which cuts the transport cost on longer routes.

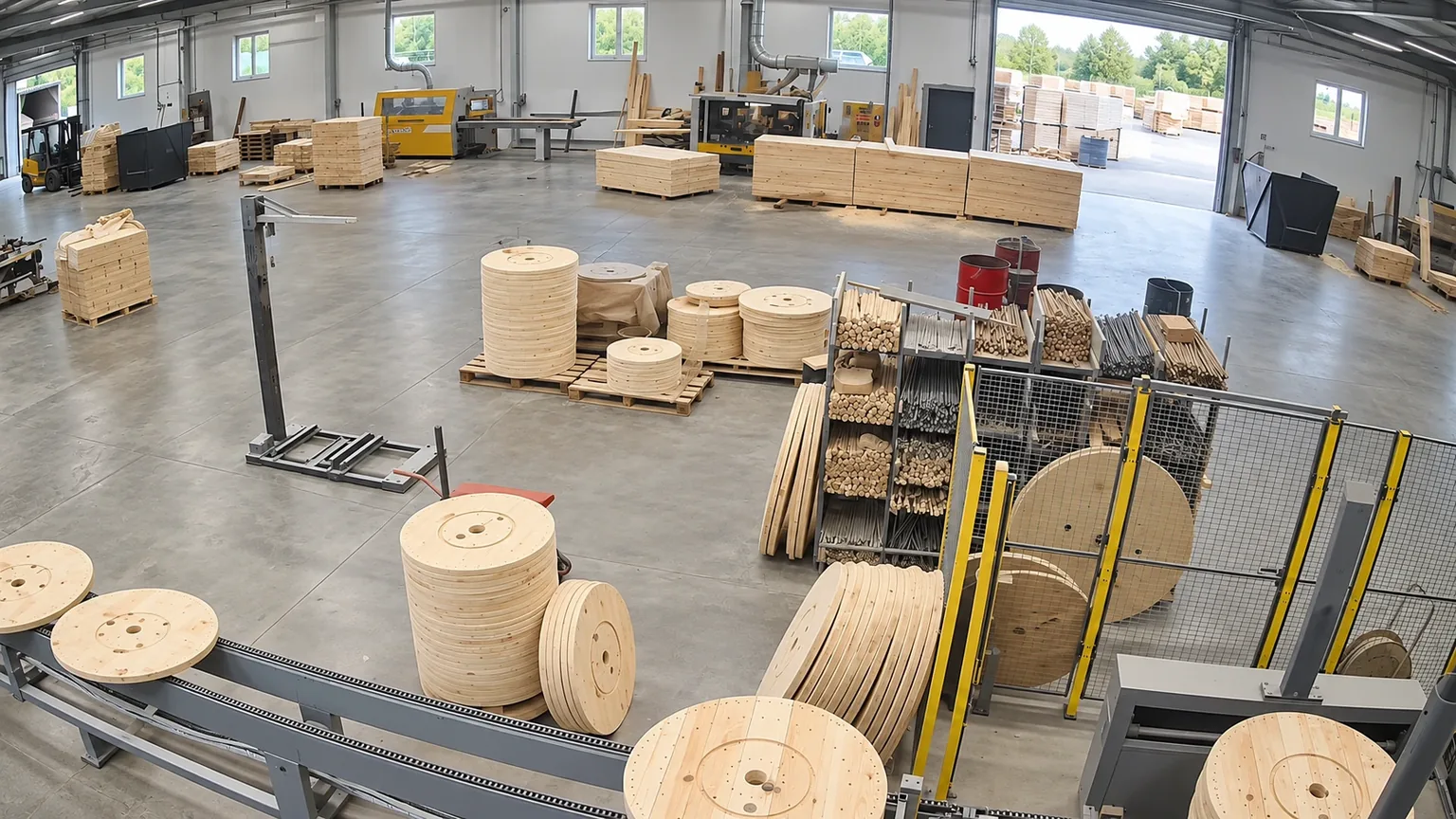

If you assemble drums yourself, we can supply complete sets: flanges, barrel staves and steel parts in the agreed proportions.
The flanges are made from the same pine as the complete drums, from our own sawmill, sourced from FSC® and PEFC certified forests. On request we apply ISPM 15 heat treatment with the IPPC mark.
Each delivery comes with the PPWR declaration of conformity and the EUDR statement with a DDS number, available in the ppwr.fallwood.com.pl portal before dispatch.
Yes, this is a separate part of our offer. Flanges and components ship in packs to drum makers and cable plants that assemble drums themselves.
Yes. The hub bore and the tie rod holes are made on the line to an agreed drawing. Pitch and diameters are set with the first order.
Yes, anywhere between 600 and 3000 mm. For an unusual size we prepare a drawing for approval before production starts.
